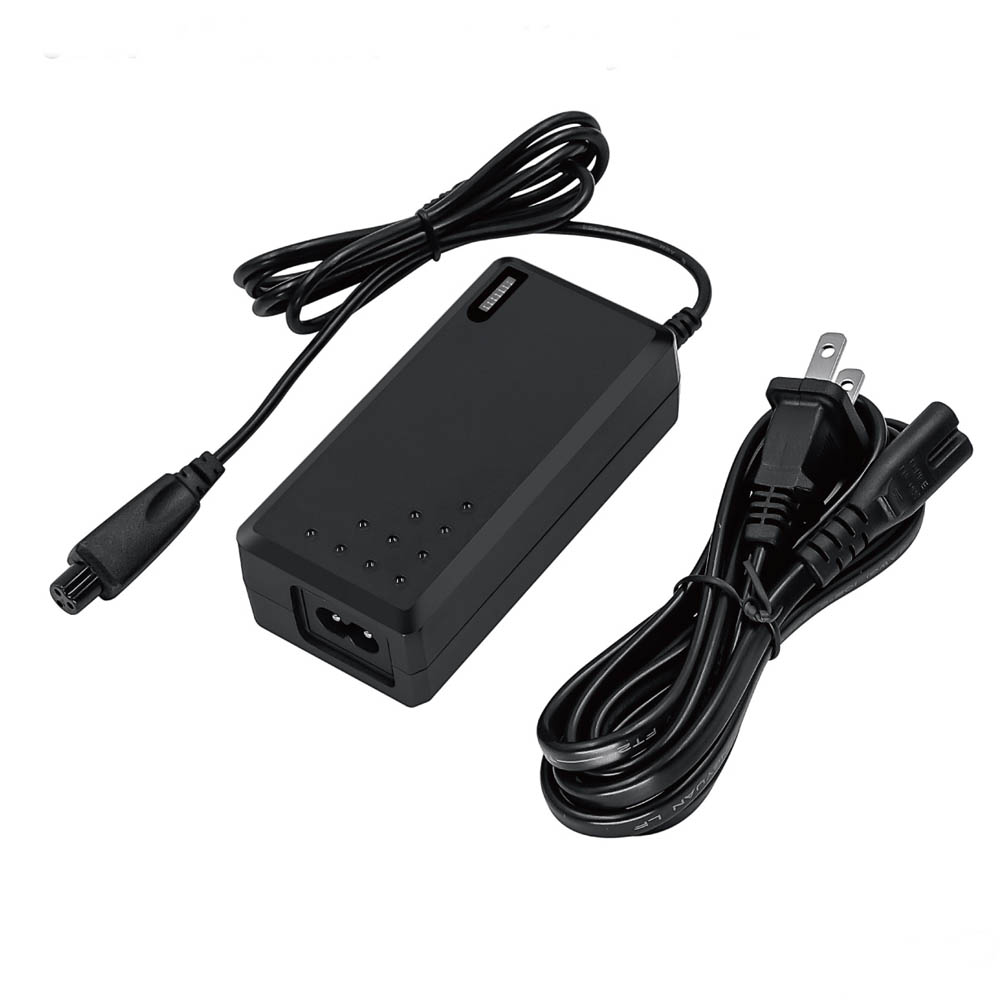

- product details
Input voltage
Minimum | Nominal | Maximum |
100Vac | 110Vac/220Vac | 240Vac |
Input Frequency
Minimum | Nominal | Maximum |
47Hz | 50Hz/60Hz | 63Hz |
Input Current Limiting
The input current should be less than 1.8A, under minimum AC input and full load.
Efficiency
The power supply efficiency shall be greater than 80% under rated input voltage. It will be measured at the typical load and maximum load.
Output characteristics
| Rating Output Voltage | No Load Voltage Range | Output rated current |
| 42V | 40.74V~43.26V | 1.5A |
| Output constant current voltage range | Output invariable current range | Test pattern |
| 30V-41V | 1.4A~1.65A | CV mode |

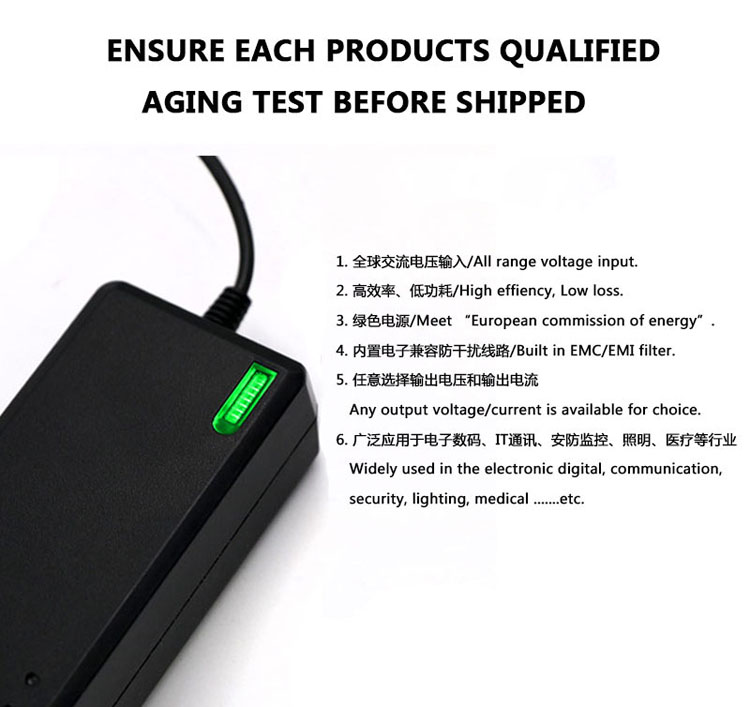

Indicator light state
| Full/standby | Charging state | Turn lamp current |
| green | red | <350mA |
Hi-pot Testing
Item | Specification | Remark | |
Primary to Secondary | 3000Vac | <5mA/3s | No arcing No broken |
Primary to P.G | N/A | N/A | |
Protection
² Over-voltage protection: 120%min
² Over-current protection: 120%min
² Short-circuit protection: automatic recovery
² over protection
² Load regulation: ±5%
